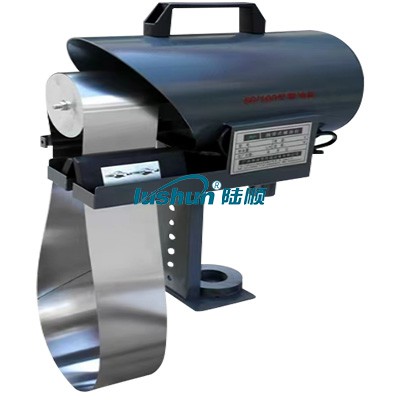

DGJ系列带式刮油机
产品介绍
DGJ系列带式刮油机（撇油机、油水分离机、油水分离器、撇油器、浮油捞除机）是目前去除液体表面浮油最可靠最经济的设备之一。操作简便、低耗电、不需要任何耗材能有效地去除水中各种液态浮油（包括机油、煤油、汽油、柴油、润滑油、植物油及其它比重小于水的油脂），不管液面上油层厚薄均可吸附干净清除。操作运行可选择手动档或自动档，可24小时内不同时间段设定定时运转或停止，无段调速运行。根据用户现场废油的粘度和油层的厚度差异，吸油钢带将含油废水表面张力打破，并吸附表面油层，将其传送到橡胶刮板刮除，从而达到油水分离的目的。
适用范围
●各种金属加工液、轧钢乳化液、清洗液的循环使用的蓄水池中去除浮油。
●工矿企业含油废水处理系统预处理调节池、深度净化前的隔油池、气浮分离池机床水箱、脱脂槽等中的浮油收集预处理系统。
技术参数表
项目 | DGJ-100 | DGJ-200 |
钢带规格（宽×厚） | 100×0.2 | 200×0.2 |
钢带材质 | 特质不锈钢 | 特质不锈钢 |
吸油量（升/小时） | 0-75 | 0-150 |
总耗电量 | 40W/50HZ | 40W/50HZ |
减速机规格 | 5GN×1/75 | 5GN×1/75 |
马达规格 | 40W/50Hz | 40W/50Hz |
重量 kg | 40 | 55 |
电源 | 220V/50Hz 单相 | |
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
