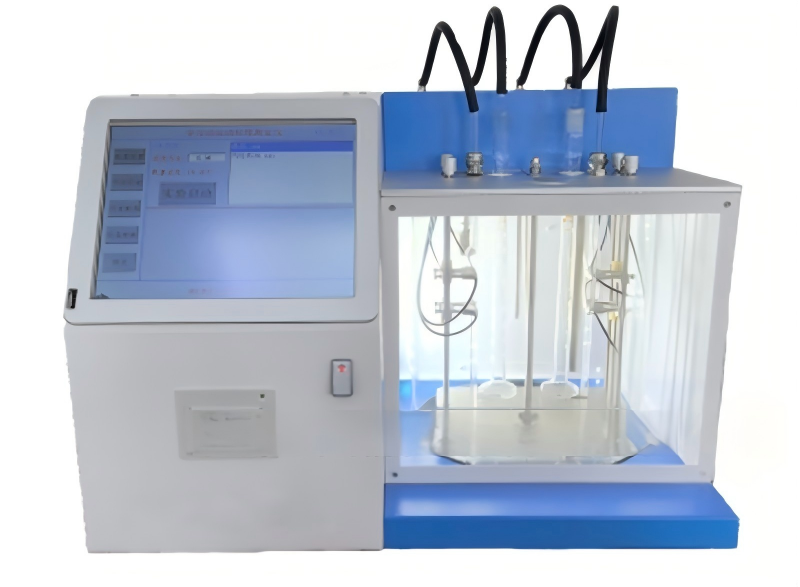

LSKV-6000A
The Automatic Kinematic Viscosity Analyzer is designed and manufactured in strict accordance with the national standard GB/T 265. It is a state-of-the-art instrument specifically developed for determining the kinematic viscosity of liquid petroleum products.
Featuring a modular design, the detection unit incorporates advanced sensors and high-precision A/D conversion circuitry. The system runs on streamlined, high-quality modular software that is seamlessly integrated with the hardware. This integration achieves full automation of the entire testing process, including:
· Automatic heating and constant temperature control
· Sample aspiration
· Liquid level detection
· Timing
· Cleaning and drying of viscometer tubes
· Printing results
This allows for a simple one-touch operation to obtain results.
The analyzer allows users to create multiple methods with various parameters, which can be selected based on the specific sample being tested, greatly facilitating the workflow. Furthermore, all set parameters are fully editable, providing the flexibility to meet the requirements for testing special or non-standard samples.
GB/T 265 Standard
Performance Indicators
1. Display: 10.4-inch True-color Touch Screen (800*600 resolution) with a user-friendly Human-Machine Interface (HMI) for easy operation.
2. Compliance: Testing process strictly complies with standard regulations, ensuring stable and reliable data.
3. Detection: Pure imported optical fiber detection is immune to interference from indoor ambient light or lamps.
4. Flexibility: The optical fiber detection position is adjustable for flexible operation.
5. Data Storage: Automatically stores N test results, which can be viewed or printed at any time.
6. Methods: Configurable multi-group parameter methods are available for selection.
7. Customization: Preset parameters are editable to adapt to special requirements.
8. Automation: Completes the entire process of sampling, timing, calculation, printing, cleaning, and drying for kinematic viscosity with a single touch.
9. Temperature Range: Ambient ~ +100°C; Accuracy: ±0.01°C.
10. Sensor: Imported Pt100 stainless steel probe with built-in temperature calibration for stable and reliable results.
11. Power Supply: AC 220V ±10%, 50Hz.
12. Heating Power: Single-cylinder: 1000W; Double-cylinder: 1000W for Side A and 1000W for Side B.
13. Total Power: Max 1500W for single-cylinder; Max 2500W for double-cylinder.
14. Ambient Temperature: 10-40℃.
15. Dimensions: Single-cylinder: 550×500×400mm; Double-cylinder: 850×500×400mm.
16. Weight: Approx. 40KG.
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
